DTC B1836 Open In Curtain Airbag LH Squib Circuit: Wiring diagram

Airbag system Ref. to WIRING SYSTEM>Airbag System>WIRING DIAGRAM .

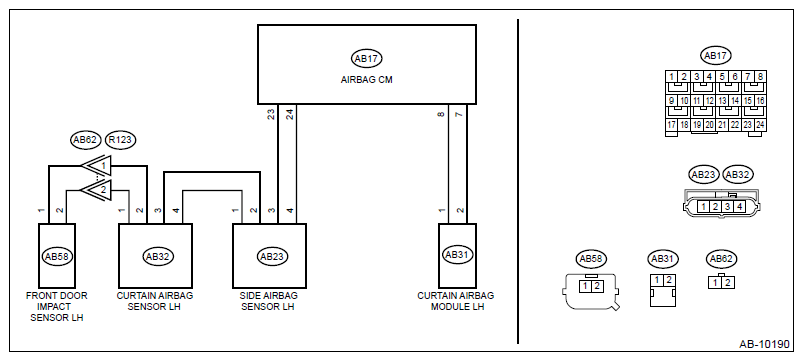

Fig 1: Open In Curtain Airbag LH Squib Circuit System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG (DIAGNOSTICS)>General Description>CAUTION .

Fig 2: Open In Curtain Airbag LH Squib Circuit Diagnostics Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

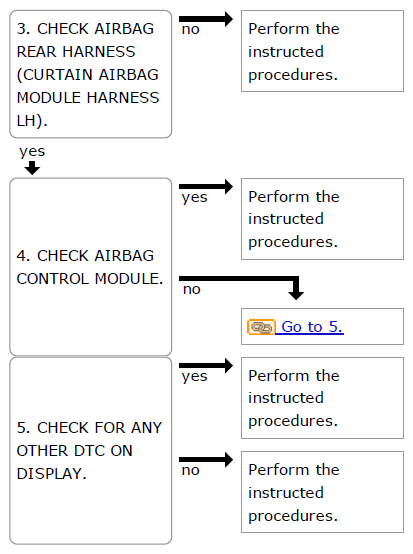

Fig 3: Open In Curtain Airbag LH Squib Circuit Diagnostics Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
