DTC B1698 Door Sensor LH Initialization Incomplete: Wiring diagram

Airbag system Ref. to WIRING SYSTEM>Airbag System>WIRING DIAGRAM .

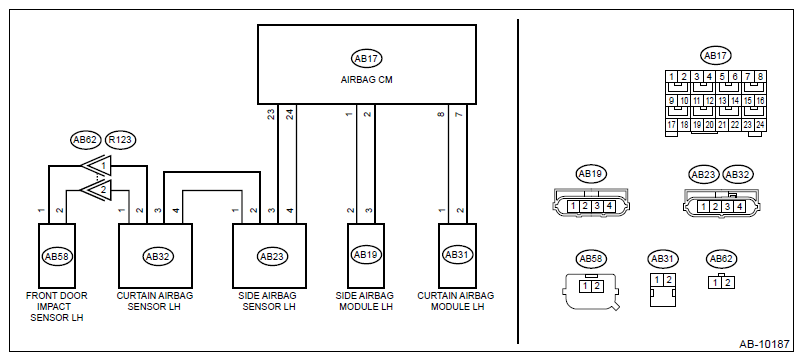

Fig 1: Door Sensor (LH) Initialization Incomplete Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description".

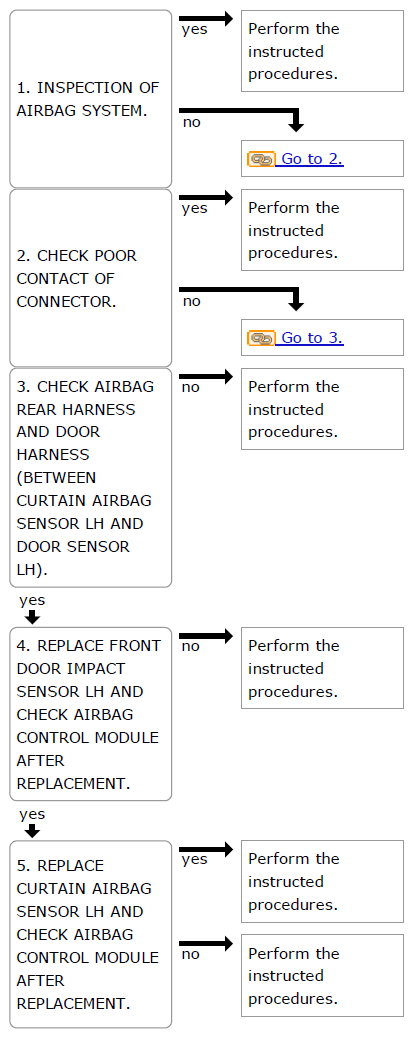

Fig 2: Door Sensor (LH) Initialization Incomplete Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
