DTC B1693 Door Sensor RH Initialization Incomplete: Wiring diagram

Airbag system Ref. to WIRING SYSTEM>Airbag System>WIRING DIAGRAM .

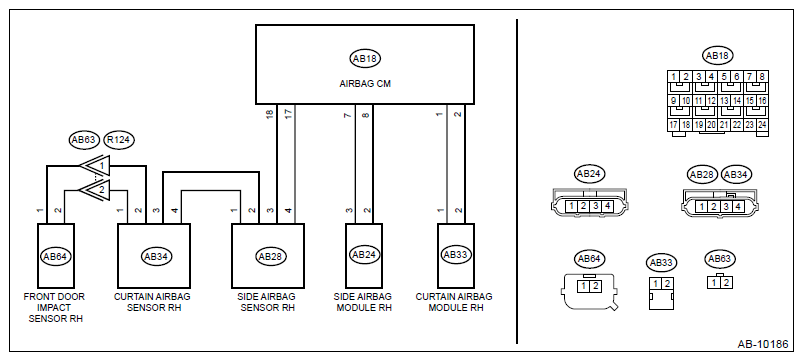

Fig 1: Door Sensor (RH) Initialization Incomplete System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG (DIAGNOSTICS)>General Description>CAUTION .

Fig 2: Door Sensor (RH) Initialization Incomplete Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
