DTC B1618 Front Sub Sensor LH Initialization Error: Wiring diagram

Airbag system Ref. to WIRING SYSTEM>Airbag System>WIRING DIAGRAM .

Fig 1: Front SUB Sensor (LH) Initialization Error System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG (DIAGNOSTICS)>General Description>CAUTION .

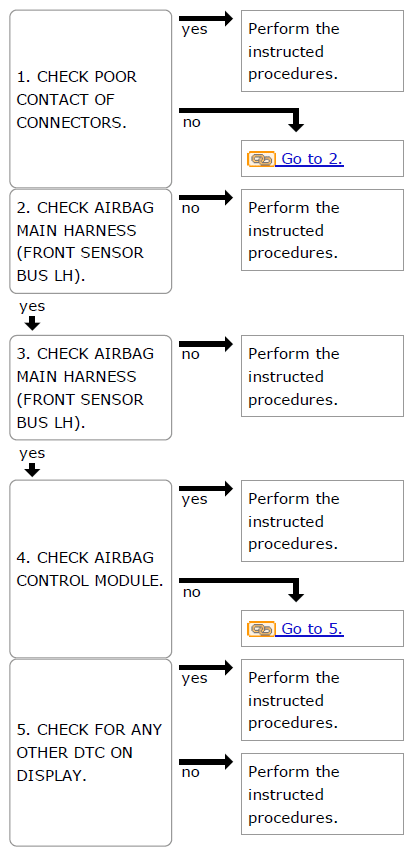

Fig 2: Front SUB Sensor (LH) Initialization Error Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
