Power Transistor (Auto A/C Model): Removal

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
3. Remove the screws and remove the duct - foot RH.
   NOTE: Remove the connector and clip of the motor - actuator mix RH, and move the harness aside.
   Fig 1: Locating Power Transistor Motor Connector And Clip

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the power transistor.
   1. Disconnect the connector.
   2. Remove the power transistor while pressing the power transistor body claw part and sliding it.

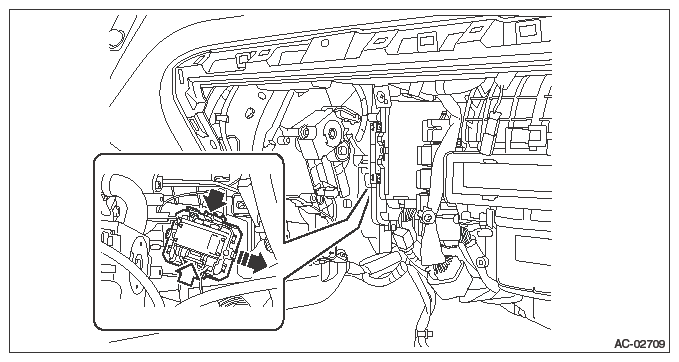

Fig 2: Disconnecting Power Transistor Connector

Courtesy of SUBARU OF AMERICA, INC.
