Heater And Cooling Unit
- Manual A/C model

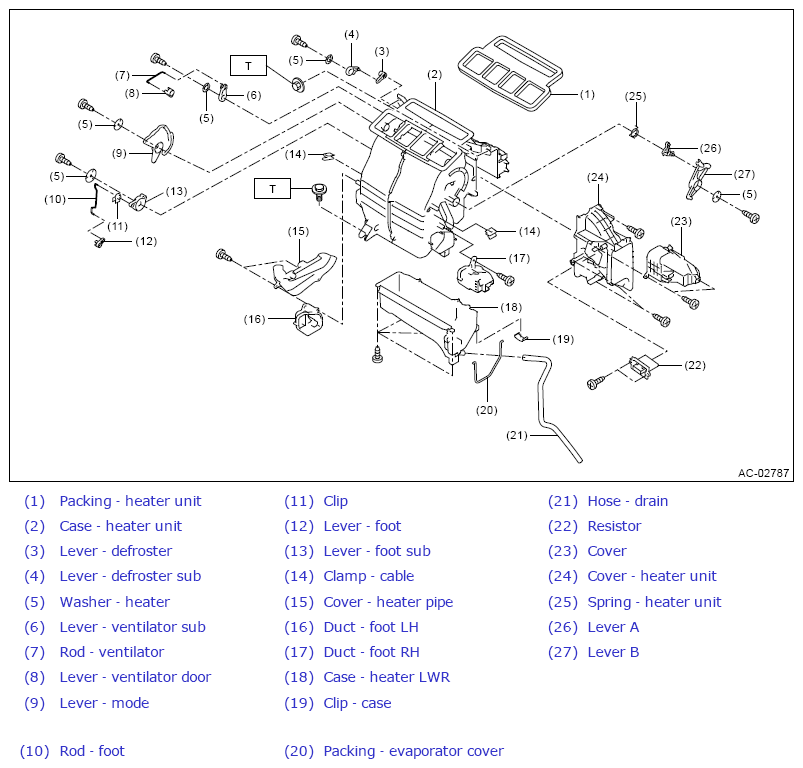

Fig 1: Identifying Heater And Cooling Unit Components With Torque Specifications (Manual A/C Model) - (1 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.51, 3.7)
T2: 6.7 (0.68, 4.9)

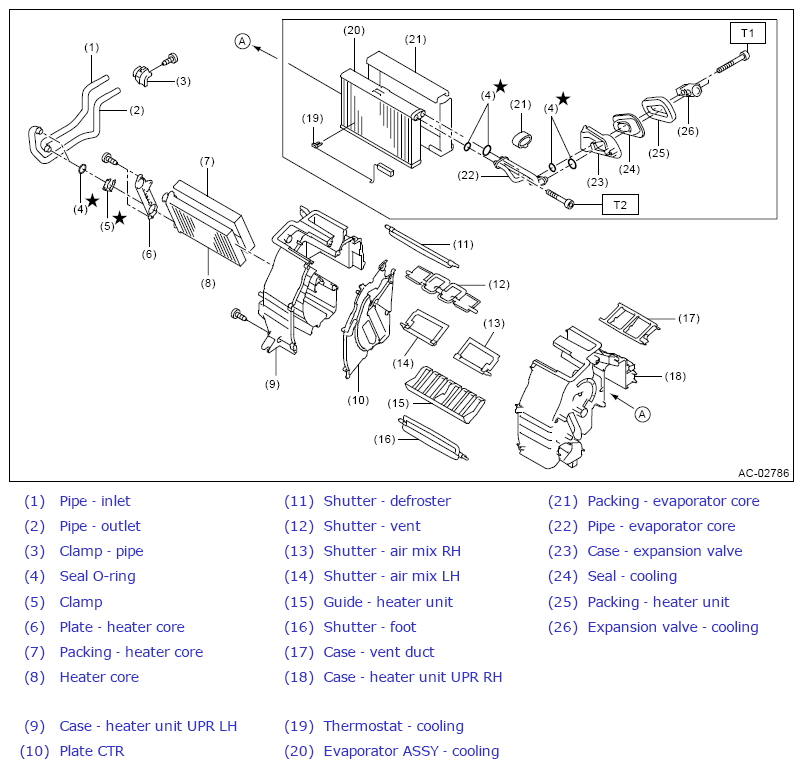

Fig 2: Identifying Heater And Cooling Unit Components With Torque Specifications (Manual A/C Model) - (2 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.5)
- Auto A/C model

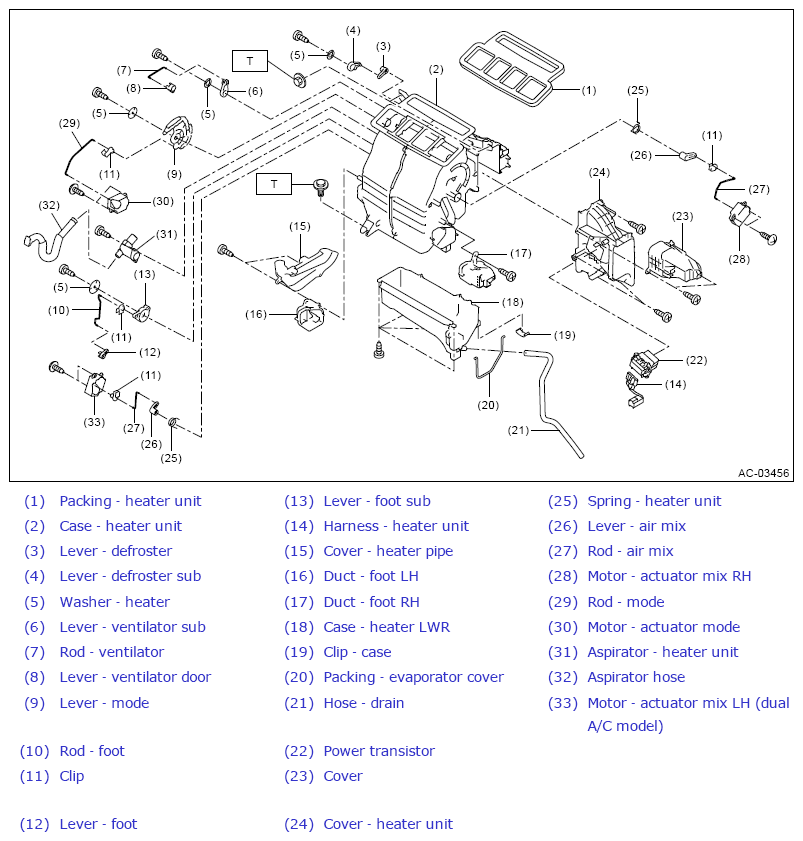

Fig 3: Identifying Heater And Cooling Unit Components With Torque Specifications (Auto A/C Model) - (1 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.51, 3.7)
T2: 6.7 (0.68, 4.9)
Fig 4: Identifying Heater And Cooling Unit Components With Torque Specifications (Auto A/C Model) - (2 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.5)
