Components With Torque Specifications: Compressor

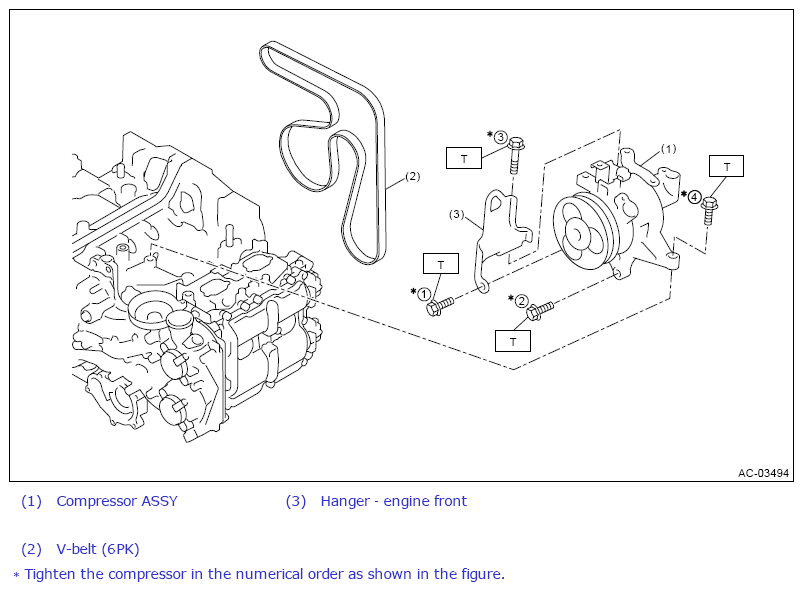

Fig 1: Identifying Compressor Components With Torque Specifications
G11268203Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 36 (3.67, 26.6)
