Blower Motor Unit

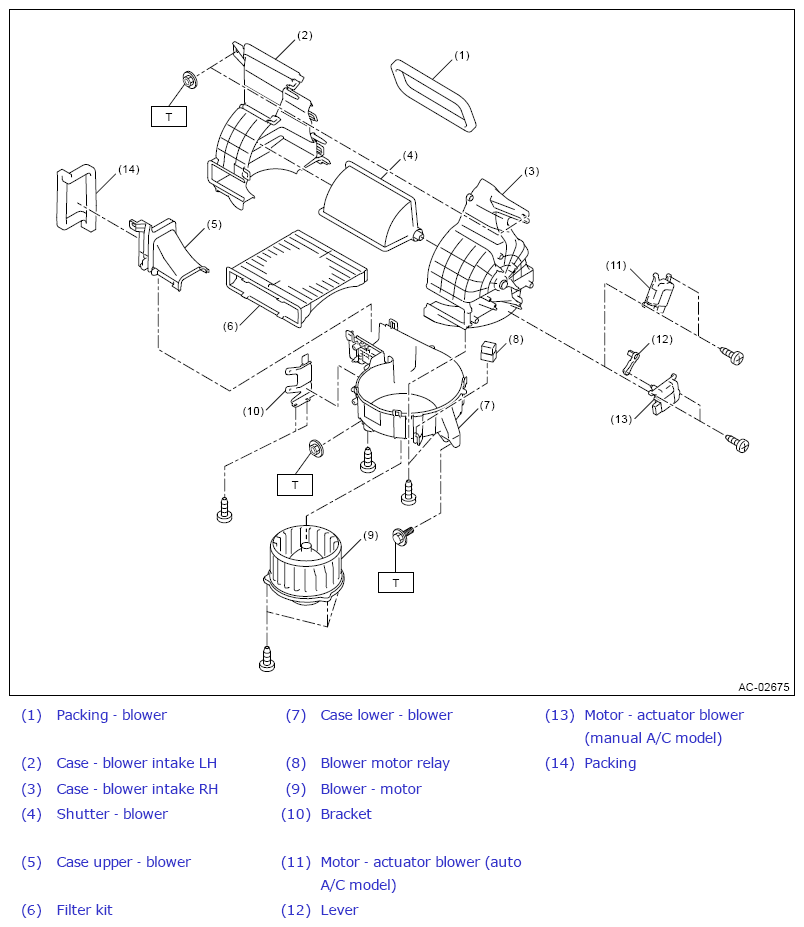

Fig 1: Identifying Blower Motor Unit Components With Torque Specifications

G11268199

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
