Air Conditioning Unit

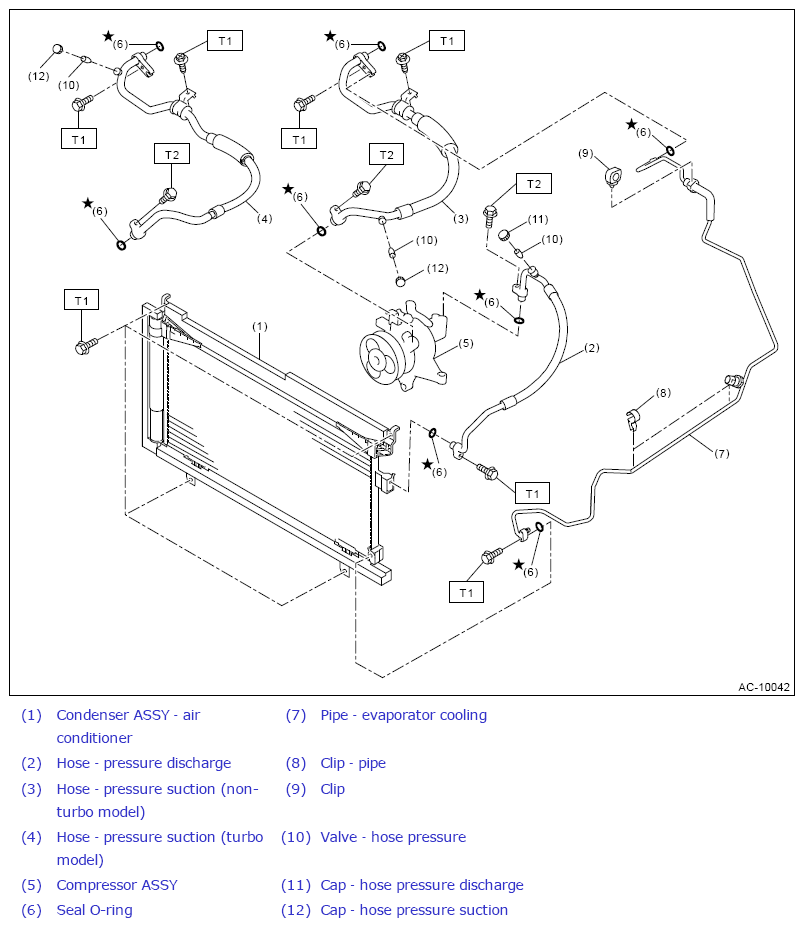

Fig 1: Identifying Air Conditioning Unit Components With Torque Specifications
G11268201Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)
