Blower Motor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Release the clips, and remove the under cover assembly - passenger.

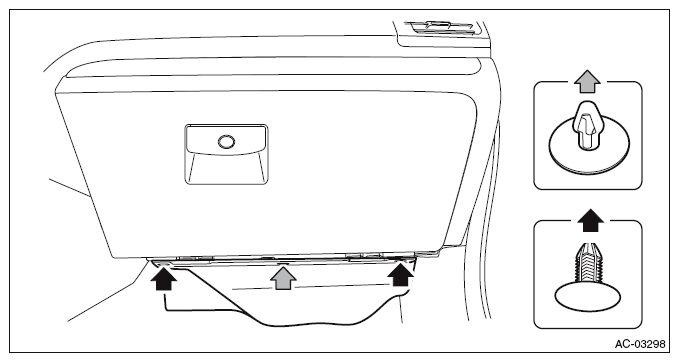

    Fig 1: Locating Blower Motor Passenger Side Under Cover Assembly Clips
    G09483751Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the blower - motor.
    1. Disconnect the connector.
    2. Remove the screws and detach the blower - motor.
Fig 2: Locating Blower Motor Connector And Screws
G08316132Courtesy of SUBARU OF AMERICA, INC.
