Blower Motor Unit Assembly: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  3. Remove the engine control module (ECM). (Non-turbo model) Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Engine Control Module (ECM)>REMOVAL .
  4. Remove the blower motor unit assembly.
    1. Disconnect the blower motor relay and each connector.

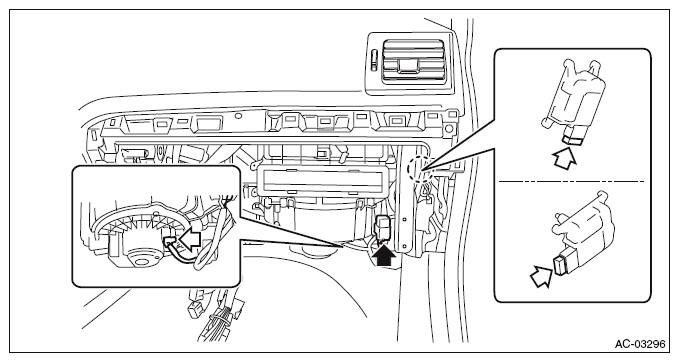

      Fig 1: Locating Blower Motor Relay Connector
      G09483749Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts and nuts to remove blower motor unit assembly.

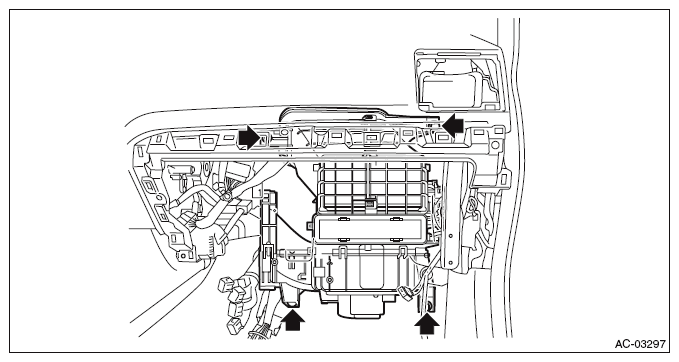

Fig 2: Locating Blower Motor Unit Assembly Bolts And Nuts
G09483750Courtesy of SUBARU OF AMERICA, INC.
