Ambient Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the ambient sensor.
    1. Disconnect the connector.
    2. Release the claws, and then remove the ambient sensor from the bracket.

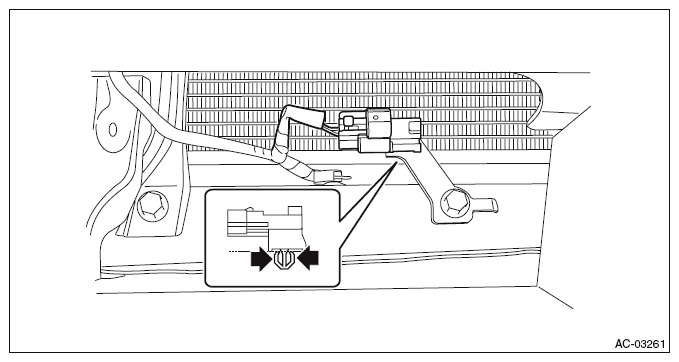

Fig 1: Locating Ambient Sensor Claws
G09483810Courtesy of SUBARU OF AMERICA, INC.
