HVAC System (Diagnostics): Electrical Component Location: Location: Compartment

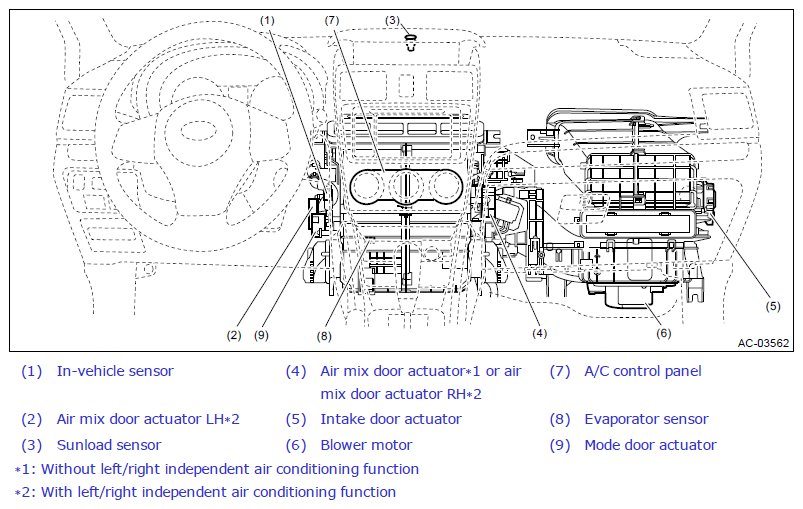

Fig 1: Identifying Air Conditioner Components (Compartment)

Courtesy of SUBARU OF AMERICA, INC.

*1: Without left/right independent air conditioning function

*2: With left/right independent air conditioning function
