DTC B14E9 Intake Door Actuator Circuit Open

DTC detecting condition:

Intake door actuator potentiometer circuit is open.

Trouble symptom:

FRESH/RECIRC does not operate.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

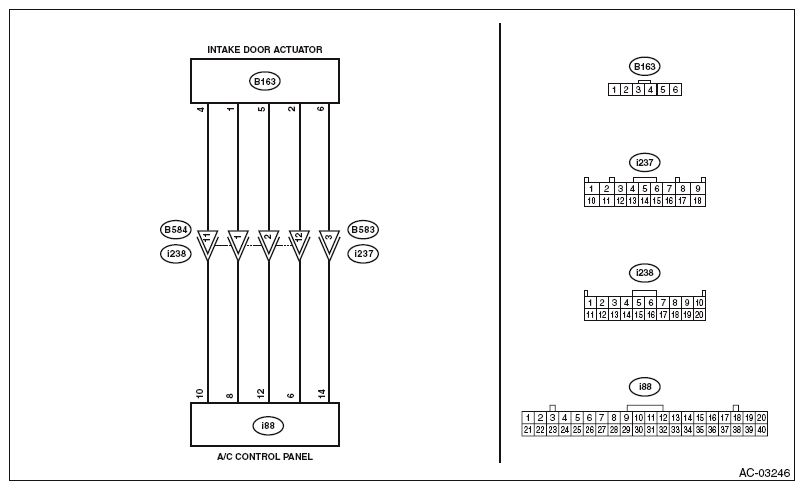

Fig 1: Air Conditioning System Wiring Diagram (Intake Door Actuator Circuit Open)

Courtesy of SUBARU OF AMERICA, INC.

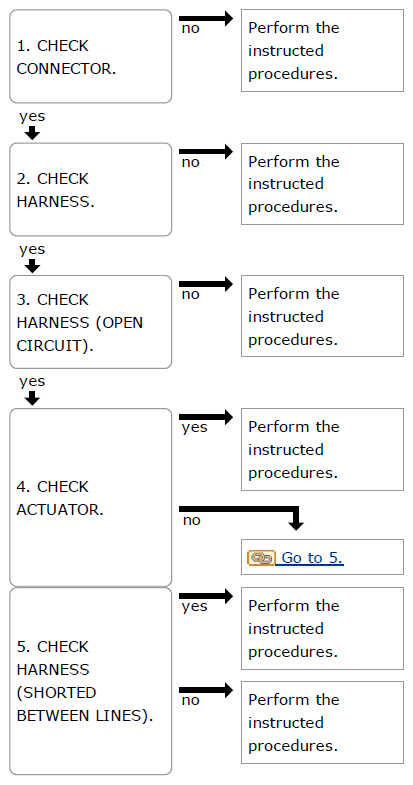

Fig 2: Air Conditioning System Intake Door Actuator Circuit Open Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
