DTC B14E6 Mode Door Actuator Stepping Motor Circuit Short-Circuit

DTC detecting condition:

Mode door actuator stepping motor circuit is shorted.

Trouble symptom:

Vent does not change.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Mode Door Actuator Stepping Motor Short-Circuit)

Courtesy of SUBARU OF AMERICA, INC.

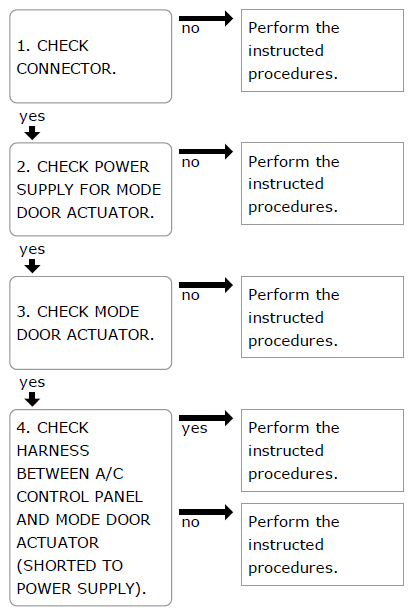

Fig 2: Air Conditioning System Mode Door Actuator Stepping Motor Short-Circuit Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
