DTC B14E5 Mode Door Actuator Stepping Motor Circuit Open

DTC detecting condition:

Mode door actuator stepping motor circuit is open.

Trouble symptom:

Vent does not change.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Mode Door Actuator Stepping Motor Circuit Open)

Courtesy of SUBARU OF AMERICA, INC.

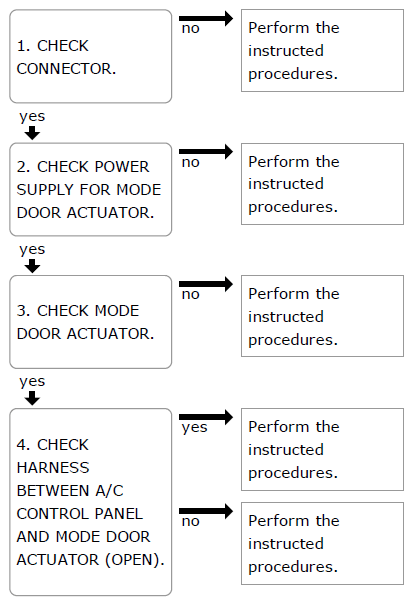

Fig 2: Air Conditioning System Mode Door Actuator Stepping Motor Circuit Open Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
