DTC B14A2 SUNLOAD Sensor Circuit Short-Circuit

DTC detecting condition:

Sunload sensor circuit is shorted.

Trouble symptom:

Operation is performed as no sunload.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Sunload Sensor Short Circuit)

Courtesy of SUBARU OF AMERICA, INC.

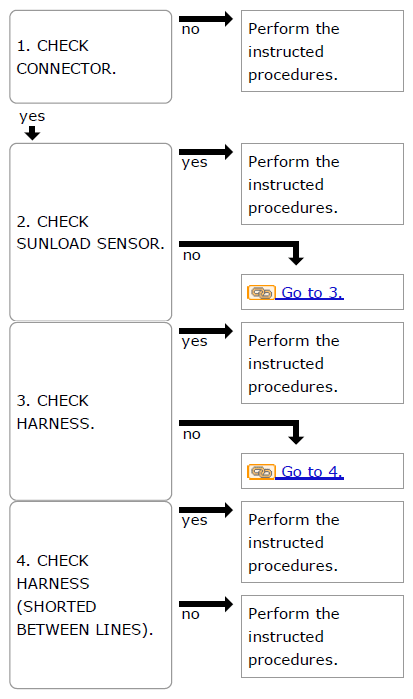

Fig 2: Air Conditioning System Sunload Sensor Short Circuit Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
