DTC B1435 Evaporator Temperature Sensor Circuit Short-Circuit

DTC detecting condition:

Evaporator sensor circuit is shorted.

Trouble symptom:

Evaporator temperature is falsely recognized as high, and the compartment temperature is adjusted.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Evaporator Temperature Sensor Short Circuit)

Courtesy of SUBARU OF AMERICA, INC.

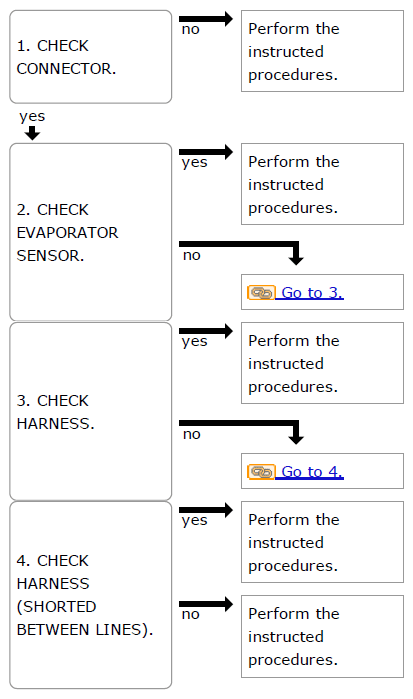

Fig 2: Air Conditioning System Evaporator Temperature Sensor Short Circuit Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
