DTC B1433 Ambient Temperature Sensor Circuit Short-Circuit (Air-Conditioner)

DTC detecting condition:

Ambient sensor circuit is shorted.

Trouble symptom:

Ambient temperature is falsely recognized, and the compartment temperature is adjusted.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Ambient Temperature Sensor Short Circuit)

Courtesy of SUBARU OF AMERICA, INC.

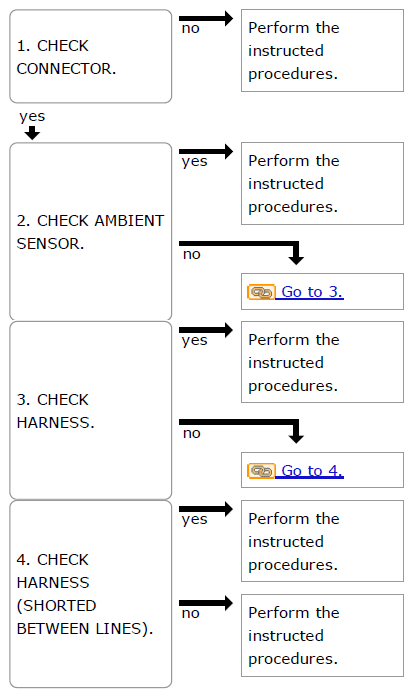

Fig 2: Ambient Temperature Sensor Short Circuit Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
