DTC B1432 Ambient Temperature Sensor Circuit Open (Air-Conditioner)

DTC detecting condition:

Ambient sensor circuit is open.

Trouble symptom:

Ambient temperature is falsely recognized, and the compartment temperature is adjusted.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

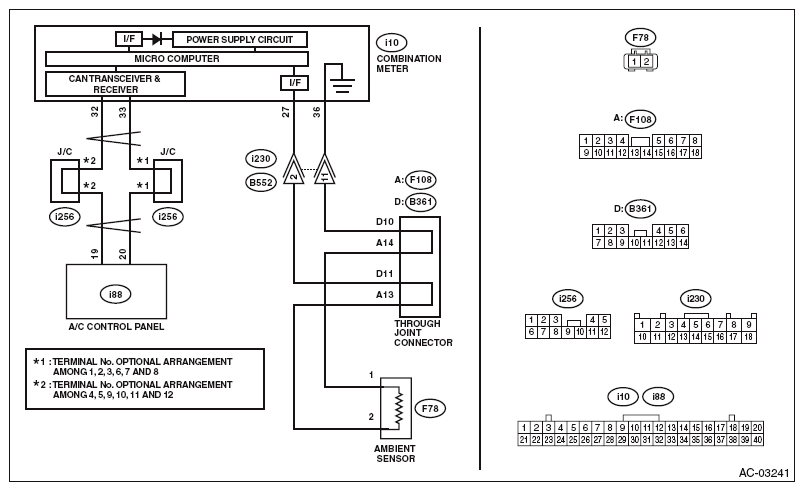

Fig 1: Air Conditioning System Wiring Diagram (Ambient Temperature Sensor Circuit Open)

Courtesy of SUBARU OF AMERICA, INC.

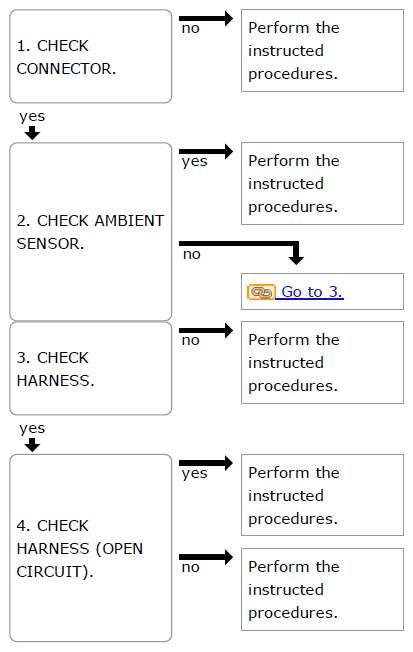

Fig 2: Air Conditioning System Ambient Temperature Sensor Circuit Open Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
