DTC B1430 In-Vehicle (Post Evaporator) Temperature Sensor Circuit Open

DTC detecting condition:

In-vehicle sensor circuit is open.

Trouble symptom:

In-vehicle air temperature is falsely recognized as 25°C (77°F), and the compartment temperature is adjusted.

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

Fig 1: Air Conditioning System Wiring Diagram (Temperature Circuit Open)

Courtesy of SUBARU OF AMERICA, INC.

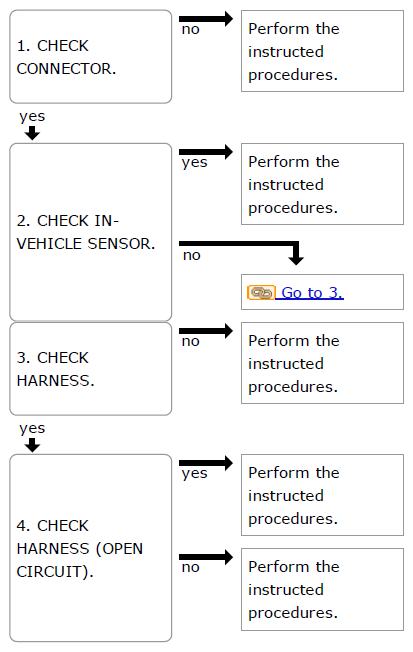

Fig 2: Air Conditioning System Temperature Circuit Open Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
