Communication For Initializing Impossible

Diagnosis:

Defective CAN communication circuit

Trouble symptom:

• LAN system is abnormal.
• Communication failure between Subaru Select Monitor and A/C control panel

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM>Air Conditioning System>WIRING DIAGRAM .

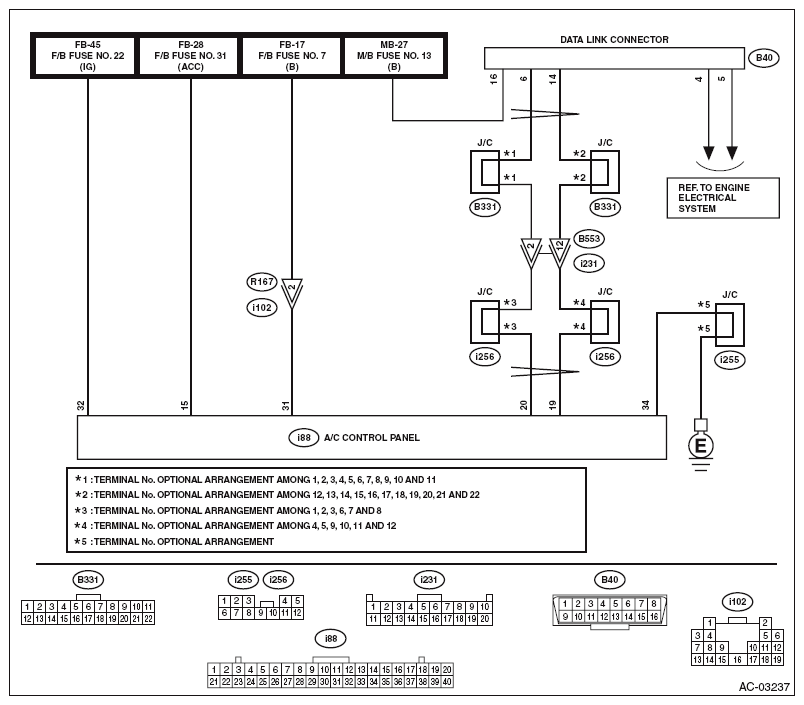

Fig 1: Air Conditioning System Wiring Diagram (Initializing Communication Impossible)

Courtesy of SUBARU OF AMERICA, INC.

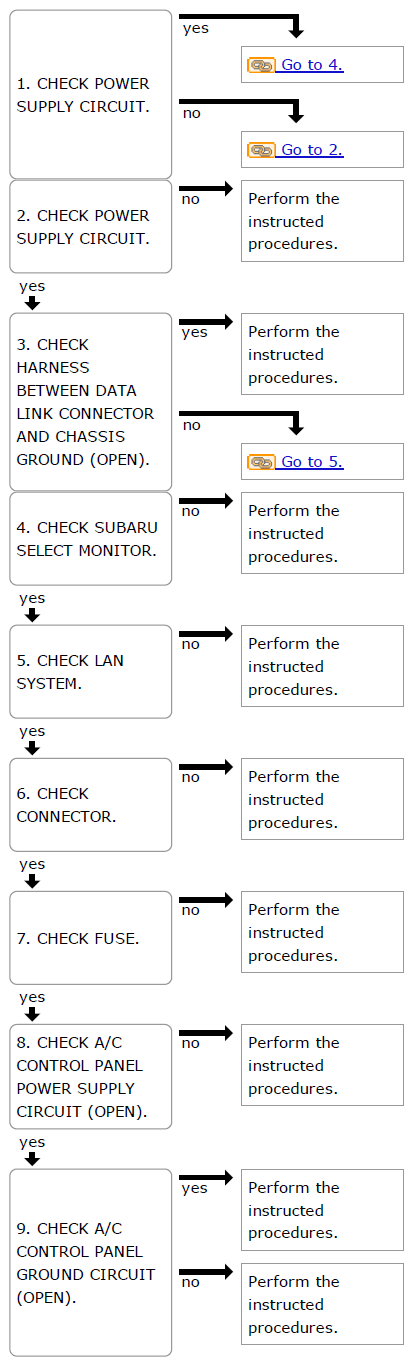

Fig 2: Initializing Communication Impossible Diagnosis Flowchart

Courtesy of SUBARU OF AMERICA, INC.
