Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

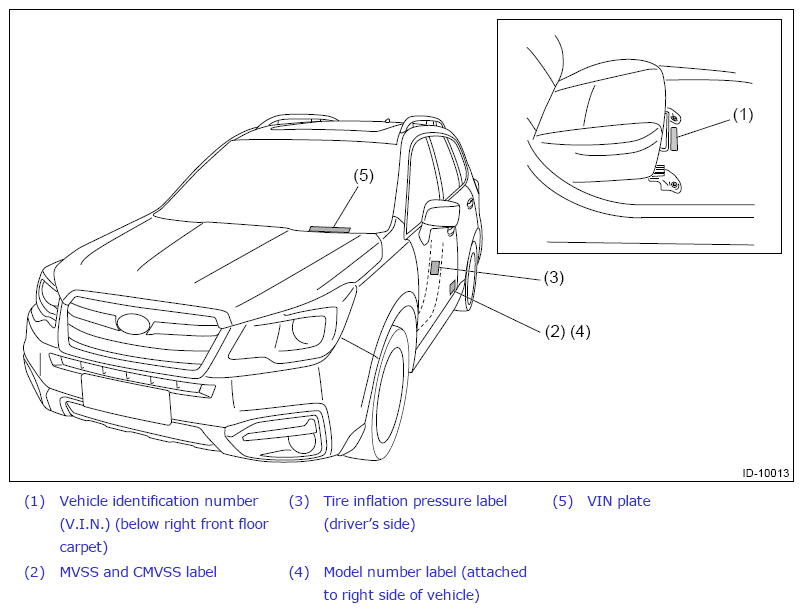

• Positioning of the plate label for identification

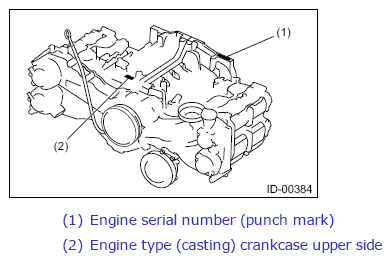

• Engine

• Automatic transmission CVT
  • TR690

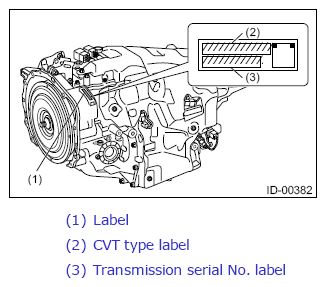

  Fig 3: Identifying Automatic Transmission CVT Serial No. Label (TR690)

  Courtesy of SUBARU OF AMERICA, INC.
  • TR580

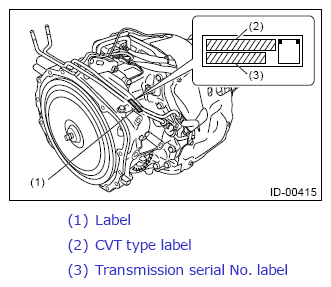

  Fig 4: Identifying Automatic Transmission CVT Serial No. Label (TR580)

  Courtesy of SUBARU OF AMERICA, INC.

• Manual transmission

• Rear differential

  T-type

  Fig 6: Identifying Rear Differential (T-Type)

  Courtesy of SUBARU OF AMERICA, INC.

  VA1-type

  Fig 7: Identifying Rear Differential (VA1-Type)

  Courtesy of SUBARU OF AMERICA, INC.

• MVSS label (for U4 and U5)

• CMVSS label (for C0 and C5)

• Model number label
