X MODE Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  3. Remove the X mode switch from the cover - shift lever.

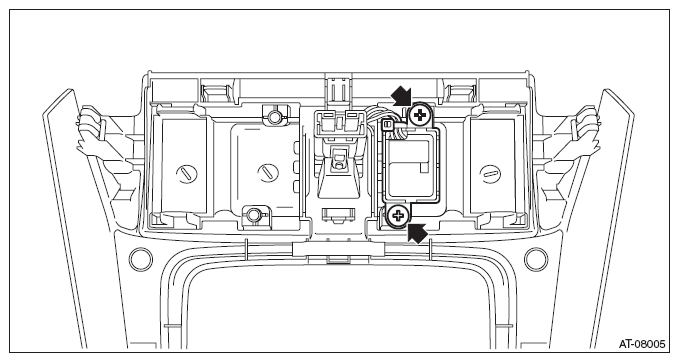

    Fig 1: Locating X Mode Switch From Cover - Shift Lever Screws
    G09481519Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the X mode switch connector from the cover - shift lever.
