Check Switch Unit

WARNING: This page is about a different variant/trim than selected.

Measure the resistance between harness connector terminals of the X mode switch.

	Terminal No.	Standard
OFF (when measured without operating the switch)	No. 4 -No. 5	1 MΩ or more
ON (when measured with the switch held down)	No. 4 -No. 5	Less than 1 Ω

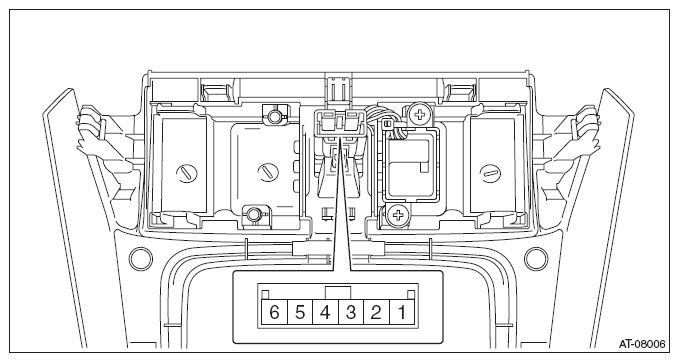

Fig 1: Identifying X Mode Switch Harness Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.
