Transmission Rear CROSSMEMBER And Rear Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the under cover front - transmission.
  4. Remove the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>REMOVAL .
  5. Remove the center exhaust cover.
    Fig 1: Removing Center Exhaust Cover
    G11270138Courtesy of SUBARU OF AMERICA, INC.
  6. Set the transmission jack under the transmission. Make sure that the support plate of transmission jack does not touch the oil pan.
  7. Remove the transmission rear crossmember.

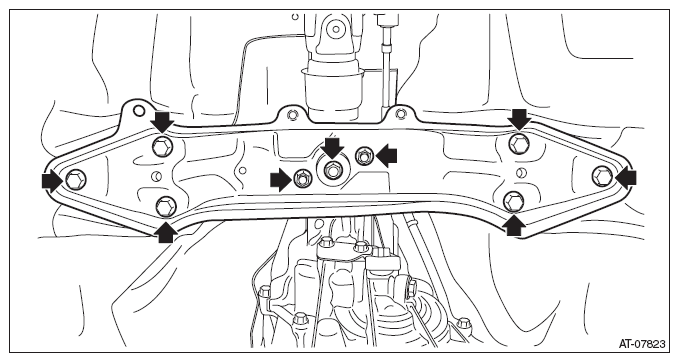

    Fig 2: Locating Transmission Rear Crossmember Bolts
    G09481421Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the rear cushion rubber.
    Fig 3: Removing Rear Cushion Rubber
    G08317744Courtesy of SUBARU OF AMERICA, INC.
