Pitching Stopper
WARNING: This page is about a different variant/trim than selected.

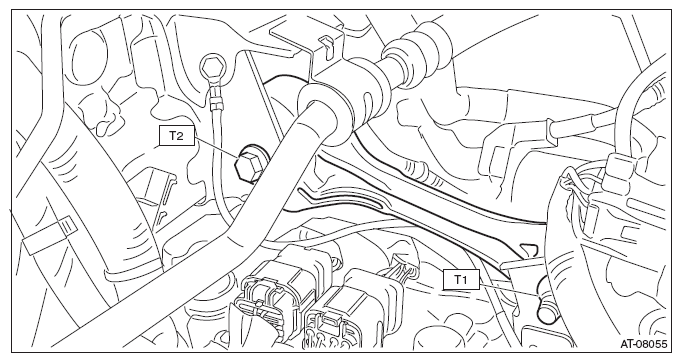

- Install the pitching stopper.
Tightening torque:
T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)
- Install the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
- Connect the battery ground terminal.
