Inhibitor Harness

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the transmission case cover.
    Fig 1: Removing Transmission Case Cover
    G09481494Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness connector from the ground terminal, turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.

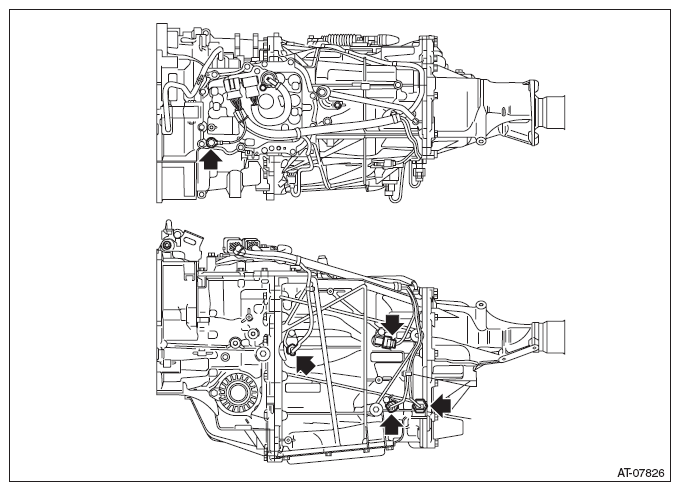

    Fig 2: Locating Transmission Harness Connector From Ground Terminal
    G09481495Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness connector from inhibitor switch.

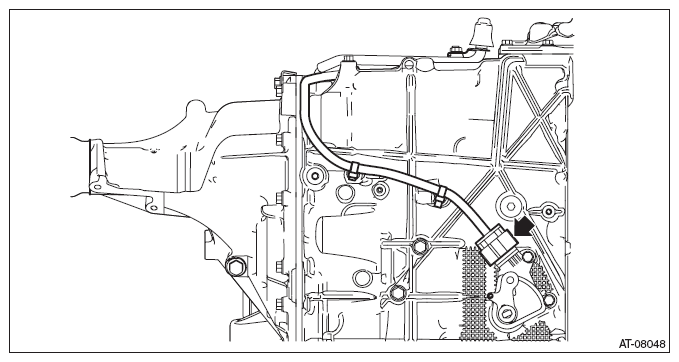

    Fig 3: Locating Harness Connector From Inhibitor Switch
    G09481496Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the inhibitor harness connector from the transmission harness stay.

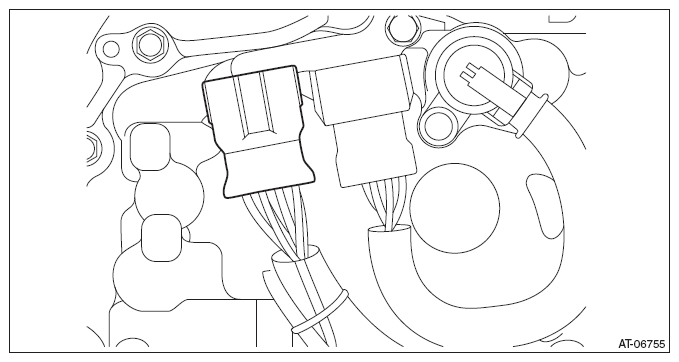

    Fig 4: Removing Inhibitor Harness Connector From Transmission Harness Stay
    G08317840Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the harness clip from the transmission, and remove the inhibitor harness.
