Inhibitor Harness
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:

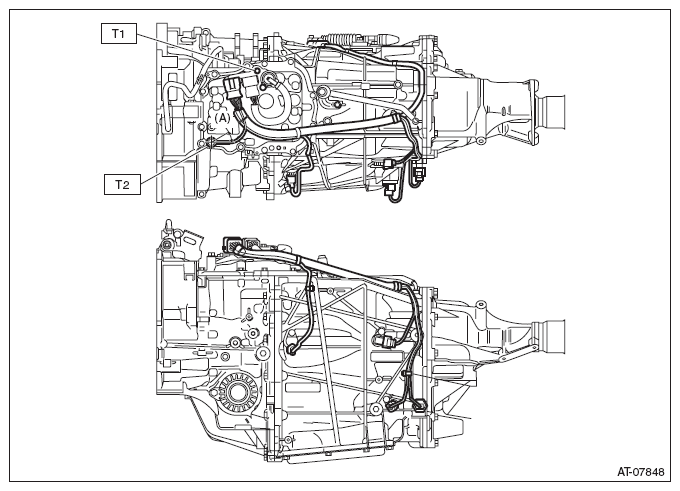

Install the transmission ground terminal in the direction within the range of approx. 30° (A).
Tightening torque:
T1: 7 N.m (0.7 kgf-m, 3.7 ft-lb)
T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)
