Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

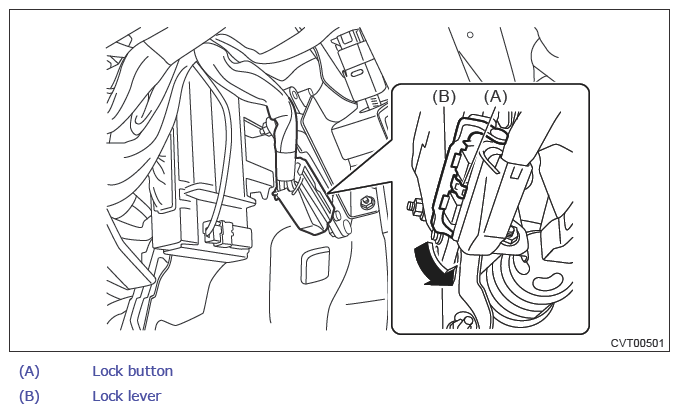

    Fig 1: Moving Lock Lever
    G11265559Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the TCM.
    Fig 2: Removing TCM
    G10218662Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM from the bracket.

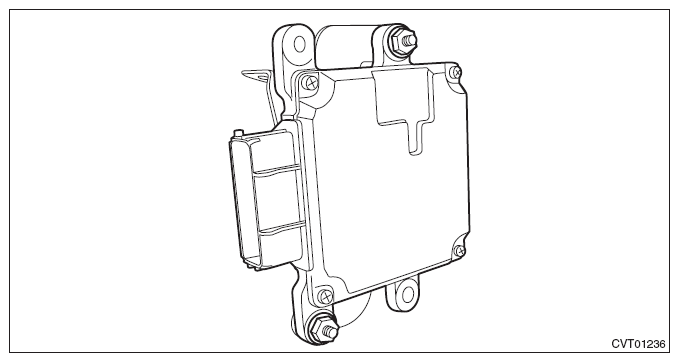

    Fig 3: Removing TCM From Bracket
    G10218663Courtesy of SUBARU OF AMERICA, INC.
