Transmission Control Module (TCM): Installation

WARNING: This page is about a different variant/trim than selected.

Install the TCM to the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

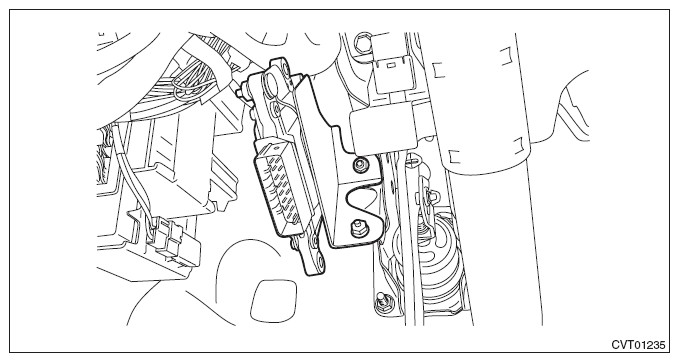

Fig 1: Installing TCM
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
NOTE: Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

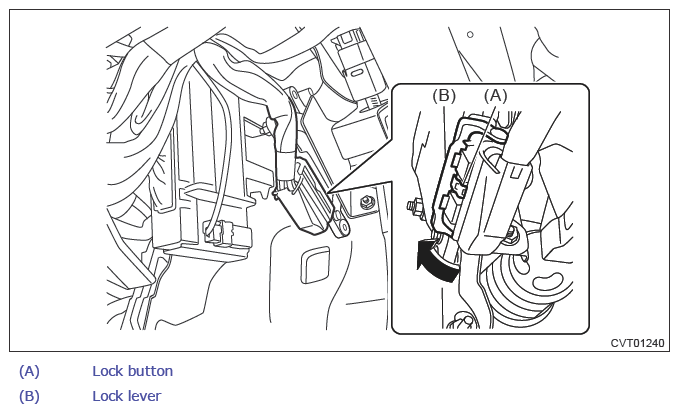

Fig 2: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Perform the diagnosis. Ref. to TRANSMISSION (DIAGNOSTICS)>Learning Control .
