Transfer Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ball bearing using ST.

    ST1 498077400 REMOVER

    ST2 899864100 REMOVER

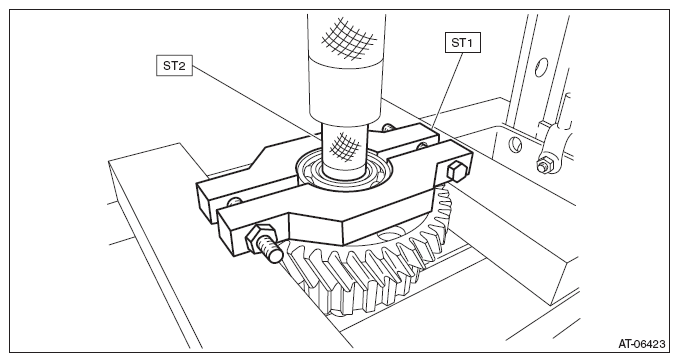

    Fig 1: Removing Ball Bearing Using ST
    G08317926Courtesy of SUBARU OF AMERICA, INC.
