Secondary Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part.
  • When secondary pressure sensor is removed, CVTF leaks. After installing the secondary pressure sensor, adjust the CVTF level.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the under cover front - transmission.
  4. Remove the secondary pressure sensor connector.
  5. Remove the secondary pressure sensor.
    NOTE: Use TONE 3/8 6-point 27 mm (manufacturer product No. 3SEN-27) deep socket or equivalent.

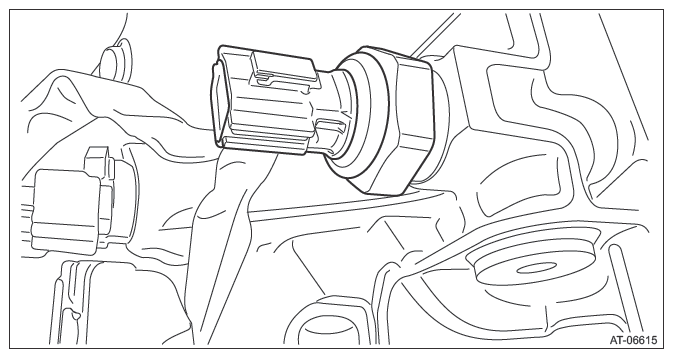

Fig 1: Identifying Secondary Pressure Sensor Connector
G11265498Courtesy of SUBARU OF AMERICA, INC.
