Primary Speed Sensor: Removal: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the primary speed sensor.

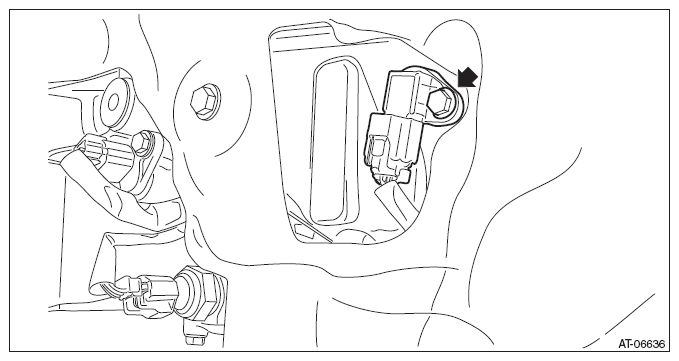

    Fig 1: Locating Primary Speed Sensor Bolt
    G08317803Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness connector from primary speed sensor.

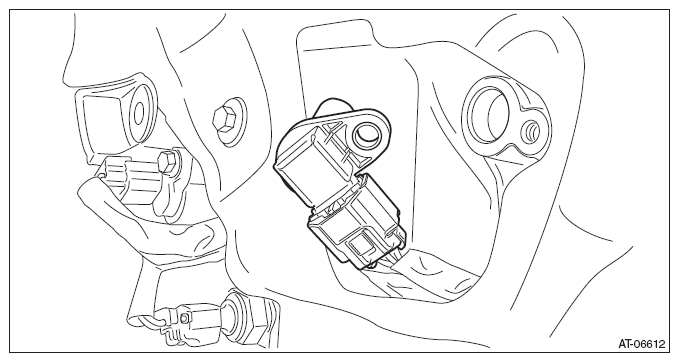

    Fig 2: Removing Harness Connector From Primary Speed Sensor
    G08317804Courtesy of SUBARU OF AMERICA, INC.
