Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.

Clean the transmission exterior.
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Torque Converter Assembly .
Attach the ST on the transmission.
ST 18632AA000 STAND ASSY

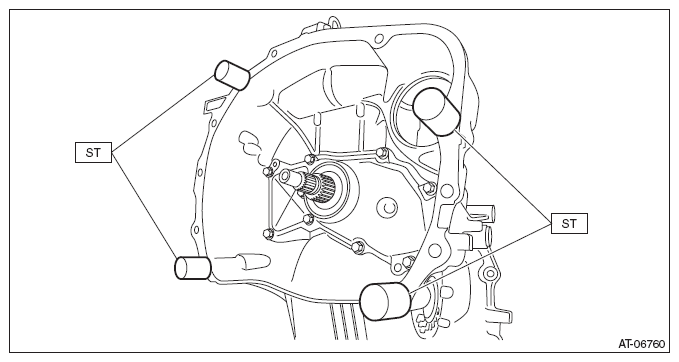

Fig 1: Attaching ST On Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover on the transmission upper side.
NOTE: For installation, first install the transmission case cover (large), then insert the transmission case cover (small) between the transmission case cover (large) and the transmission to install.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

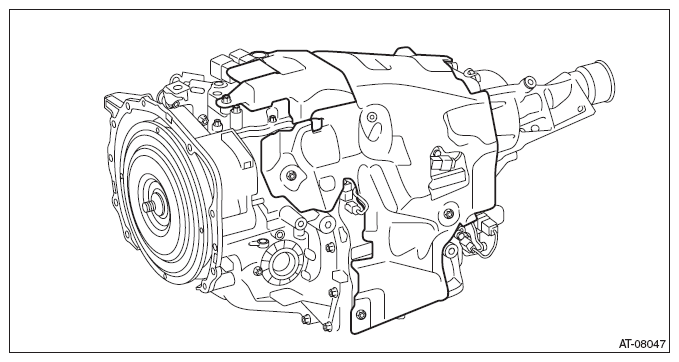

Fig 2: Removing Transmission Case Cover On Transmission Upper Side
Courtesy of SUBARU OF AMERICA, INC.

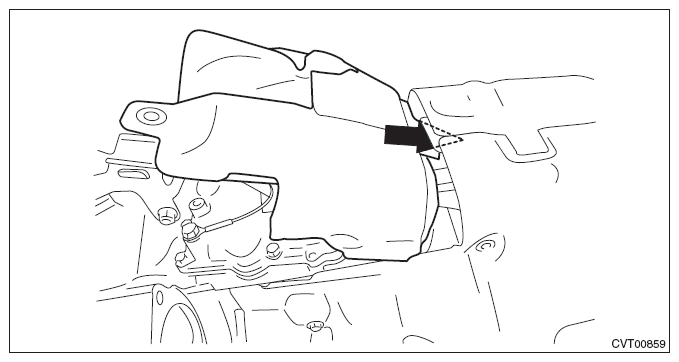

Fig 3: Inserting Transmission Case Cover (Small) Between Transmission Case Cover (Large) And Transmission
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Finally, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>General Description>SPECIFICATION>HYDRAULIC CONTROL AND LUBRICATION .

NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

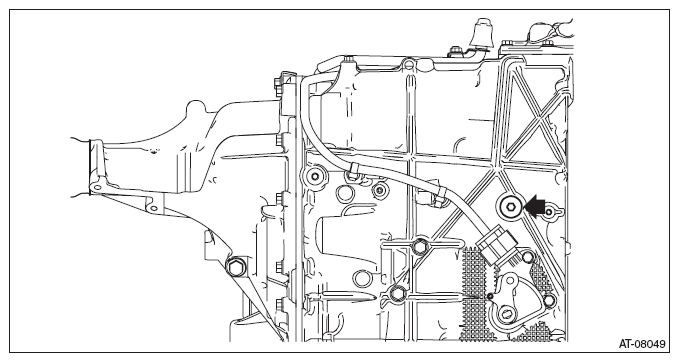

Fig 4: Locating Transmission Right Side Plug
