Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the O-ring.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-ring.

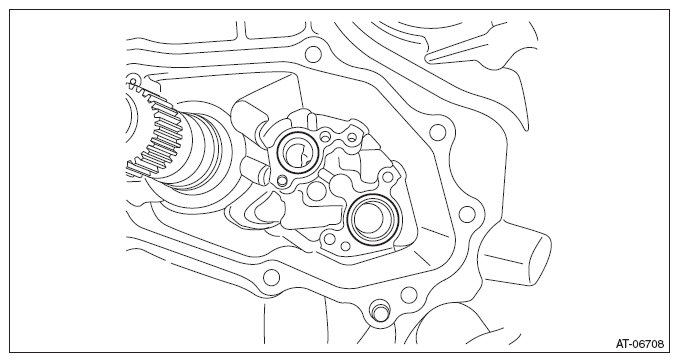

    Fig 1: Installing O-Ring
    G08318182Courtesy of SUBARU OF AMERICA, INC.
  2. Install the plate and the oil pump.
    NOTE: Apply CVTF to the bolt.

    Tightening torque:

    8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

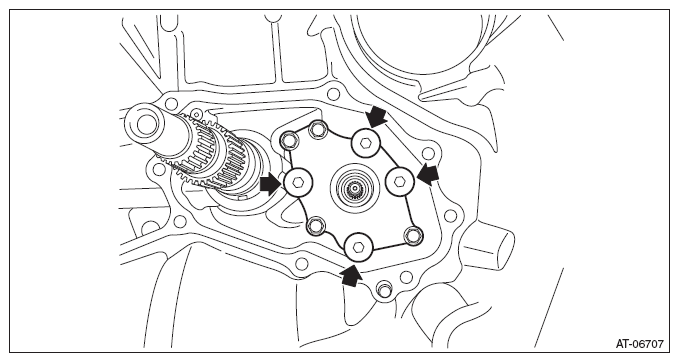

    Fig 2: Locating Oil Pump And Plate Bolts
    G08318181Courtesy of SUBARU OF AMERICA, INC.
  3. Install the oil pump chain cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pump Chain>INSTALLATION .
  4. Install the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Torque Converter Assembly>INSTALLATION .
  5. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
