Drive Sprocket

WARNING: This page is about a different variant/trim than selected.
  1. Remove the snap ring.

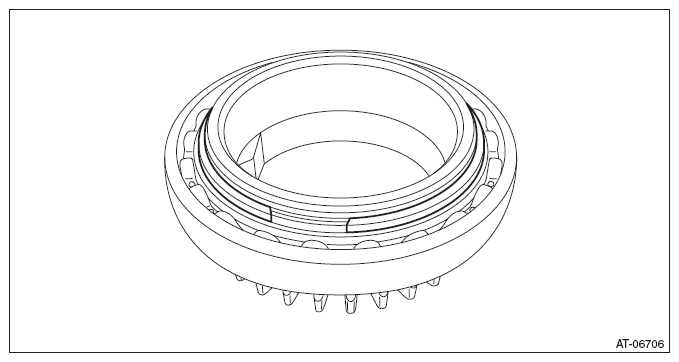

    Fig 1: Removing Snap Ring
    G08318177Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing using ST.

    ST1 498077600 REMOVER

    ST2 399513600 INSTALLER

    Fig 2: Removing Ball Bearing Using ST
    G06654751Courtesy of SUBARU OF AMERICA, INC.
