Reverse Brake Assembly

WARNING: This page is about a different variant/trim than selected.

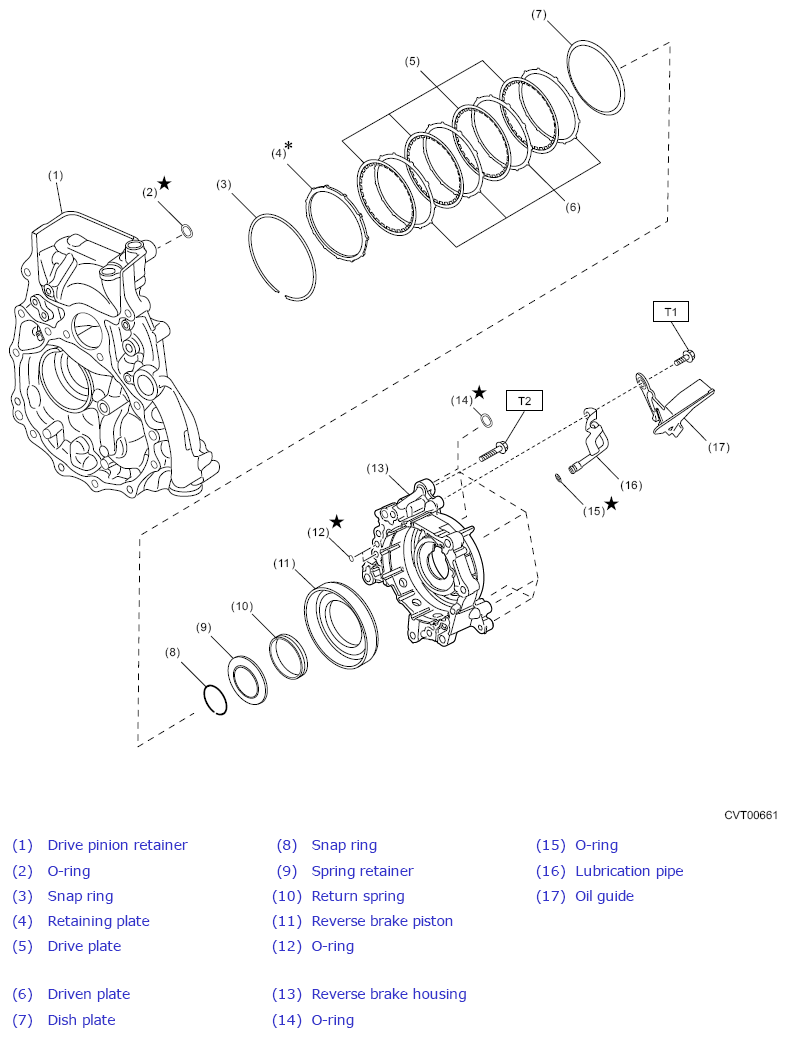

Fig 1: Exploded View Of Reverse Brake Assembly With Torque Specification
G11265320Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 37 (3.8, 27.3)
