Primary Pulley, Secondary Pulley & VARIATOR Chain And Reduction Drive Gear

WARNING: This page is about a different variant/trim than selected.

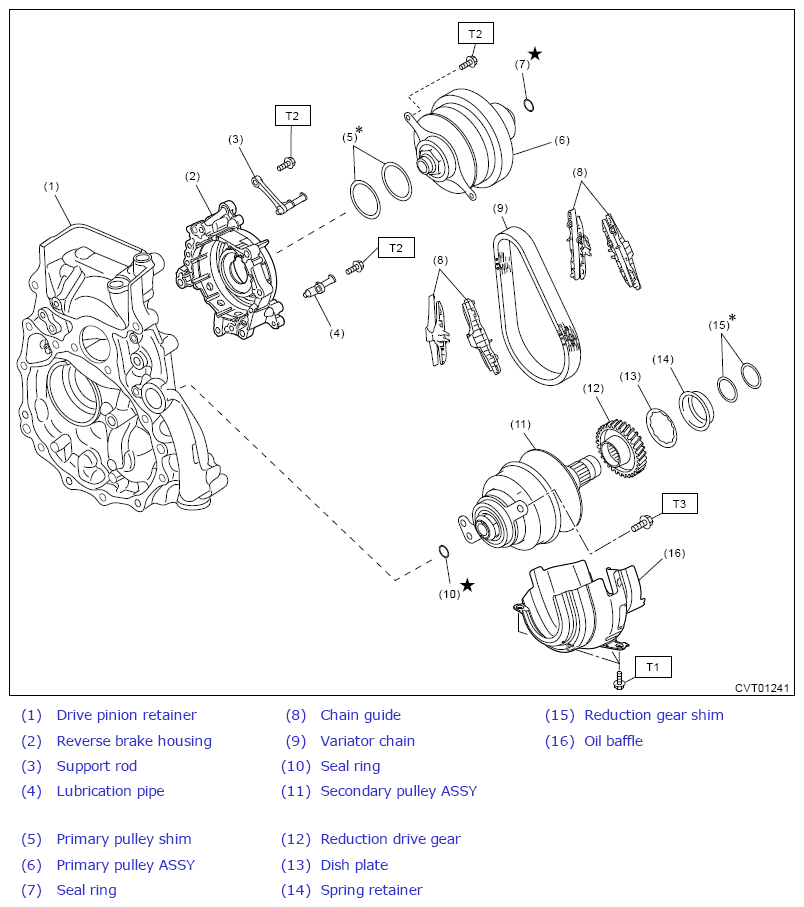

Fig 1: Exploded View Of Primary Pulley, Secondary Pulley & Variator Chain And Reduction Drive Gear With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 21 (2.1, 15.5)

T3: 67.5 (6.9, 49.8)
