Front Differential Gear

WARNING: This page is about a different variant/trim than selected.

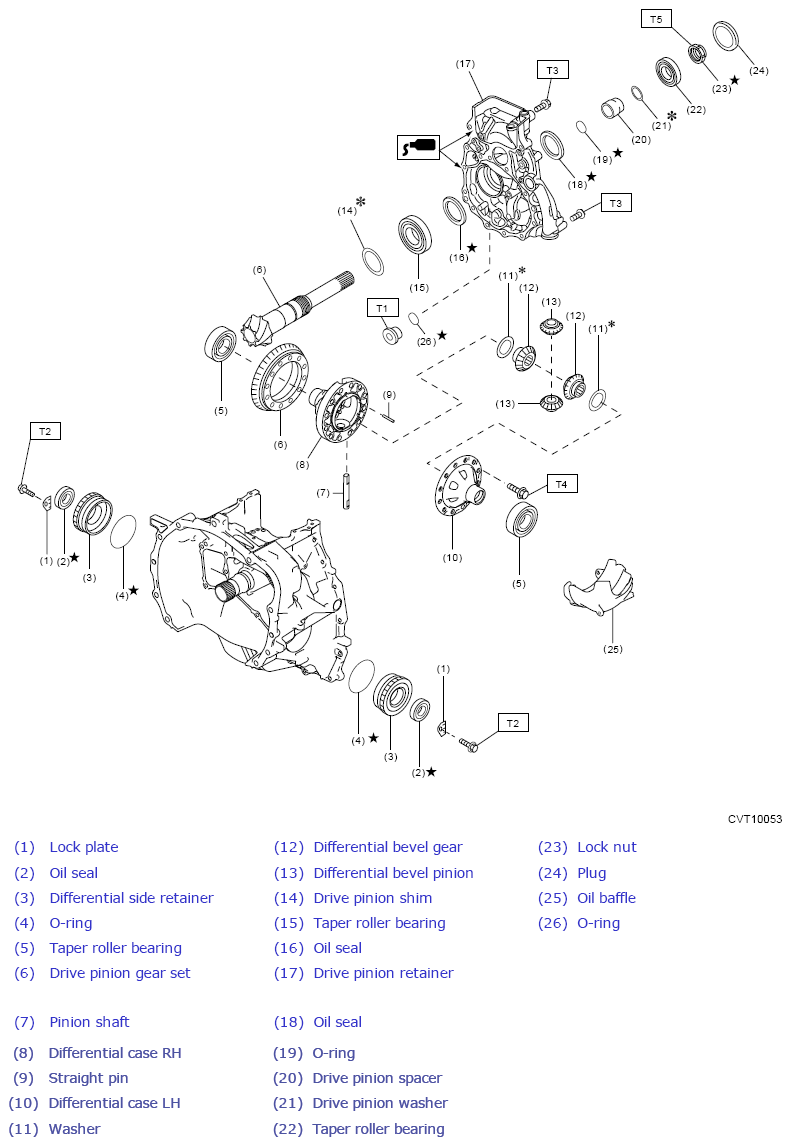

Fig 1: Exploded View Of Front Differential Gear With Torque Specification
G11265324Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 (2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 43 (4.4, 31.7)

T4: 64 (6.5, 47.2)

T5  : Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Drive Pinion Shaft Assembly>ASSEMBLY .
