Planetary Carrier Assembly

WARNING: This page is about a different variant/trim than selected.
NOTE: Disassemble the balance oil guide only.
  1. Remove the snap ring.

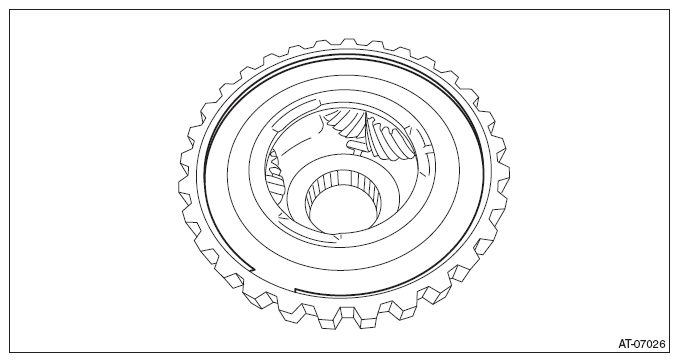

    Fig 1: Removing Snap Ring
    G08318067Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the balance oil guide.
