Internal Gear

WARNING: This page is about a different variant/trim than selected.
  1. Remove the snap ring.

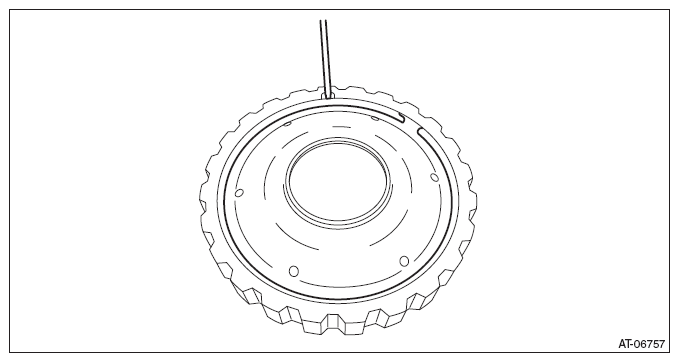

    Fig 1: Removing Snap Ring
    G08318068Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the thrust gear plate.

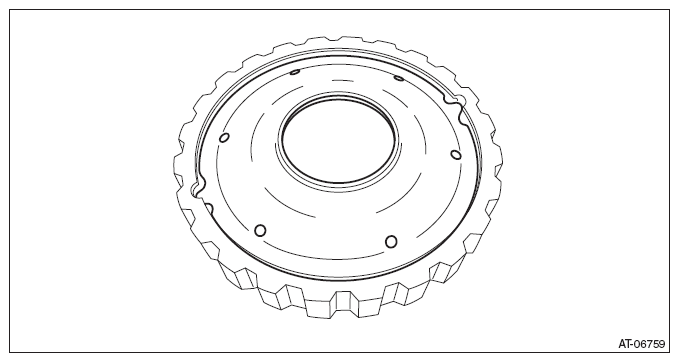

    Fig 2: Removing Thrust Gear Plate
    G08318069Courtesy of SUBARU OF AMERICA, INC.
