Forward Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

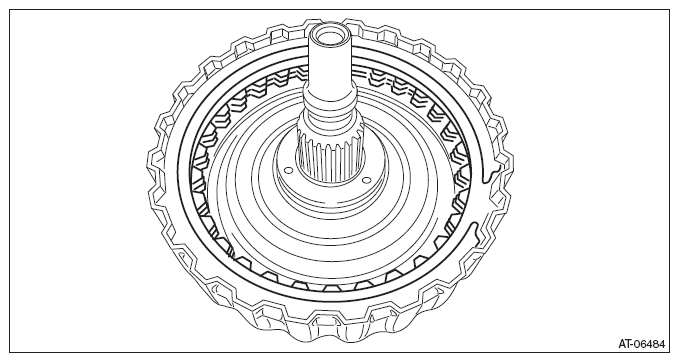

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 1: Removing Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.

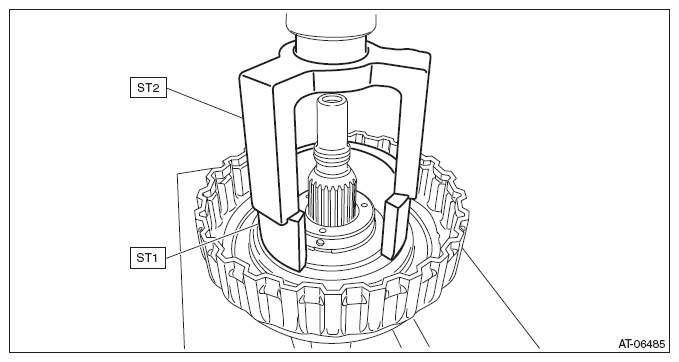

Compress the return spring using the ST to remove the snap ring.
ST1 18762AA010 COMPRESSOR SPECIAL TOOL

ST2 398673600 COMPRESSOR

Fig 2: Compressing Return Spring Using ST
Courtesy of SUBARU OF AMERICA, INC.

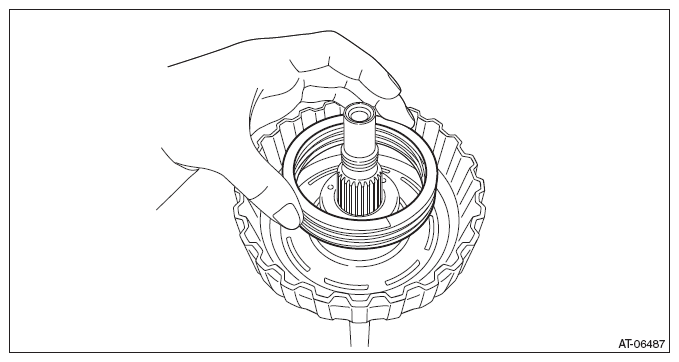

Remove the chamber COMPL and snap ring.

Fig 3: Removing Chamber COMPL And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 4: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.

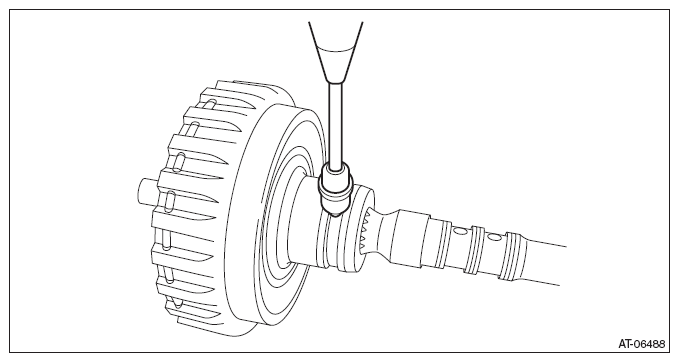

Remove the forward clutch piston by blowing compressed air intermittently from the forward clutch carrier hole.

Fig 5: Blowing Compressed Air From Forward Clutch Carrier Hole

Courtesy of SUBARU OF AMERICA, INC.
