Drive Plate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Set the ST.
    NOTE: Set the ST to the drive plate referring to the illustration.

    ST 498497300 CRANKSHAFT STOPPER

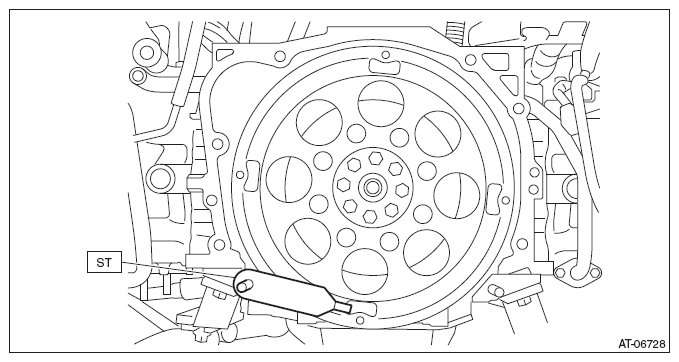

    Fig 1: Setting ST To Drive Plate
    G08317884Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
