Drive Pinion Shaft Assembly: Inspection
WARNING: This page is about a different variant/trim than selected.
- Make sure that all component parts are free of scratches, holes and other faults.
- Check the tooth contact. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Drive Pinion Shaft Assembly>ADJUSTMENT .
- Apply CVTF to bearing and rotate the bearing to check for noise or dragging etc.
- Check the starting torque of drive pinion shaft.
CAUTION:
Before measuring, apply differential gear oil to roller of bearing and rotate the bearing several times.

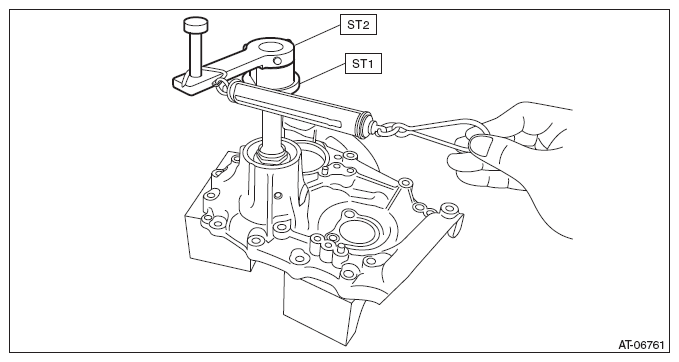

ST1 498937110 HOLDER
ST2 499787700 WRENCH
Starting torque:
5.1-17.1 N (0.5-1.7 kgf, 1.1-3.8 lbf)
