Differential Gear Oil: Adjustment

WARNING: This page is about a different variant/trim than selected.

NOTE: Immediately after removing the overflow drain plug, remaining gear oil (approx. 8 cc) may come out of the overflow pipe. This is not included in the specified amount. When removing the overflow drain plug, make sure the gear oil flows out of the overflow drain plug hole by filling with gear oil.

Lift up the vehicle.
Remove the under cover front - transmission.
Remove the filler plug.

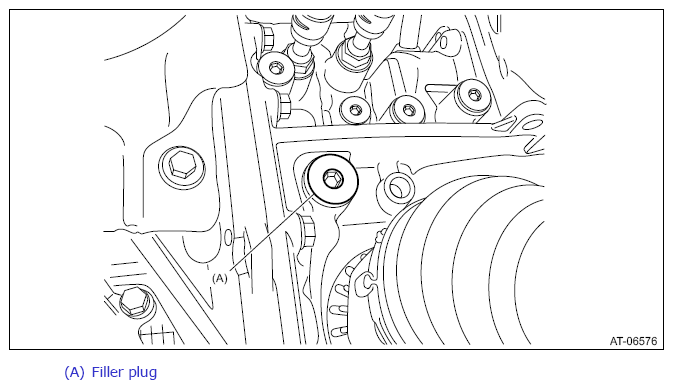

Fig 1: Identifying Filler Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the overflow drain plug.

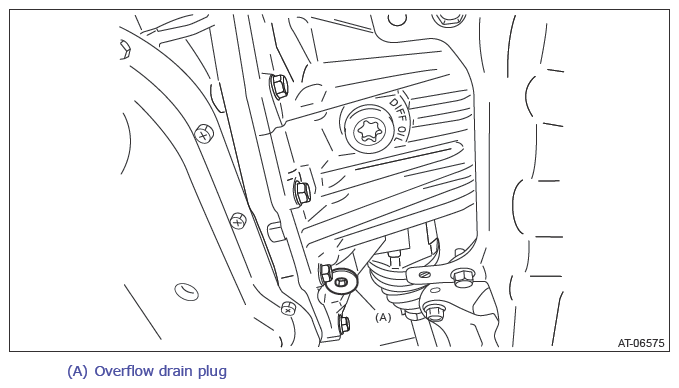

Fig 2: Identifying Overflow Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Fill in the differential gear oil through the filler plug hole up to where the oil flows out of the overflow drain plug.
Recommended gear oil:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>General Description>SPECIFICATION>FRONT DIFFERENTIAL GEAR OIL .
When the flow of the differential gear oil turns into a narrow stream, install the overflow drain plug.
NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

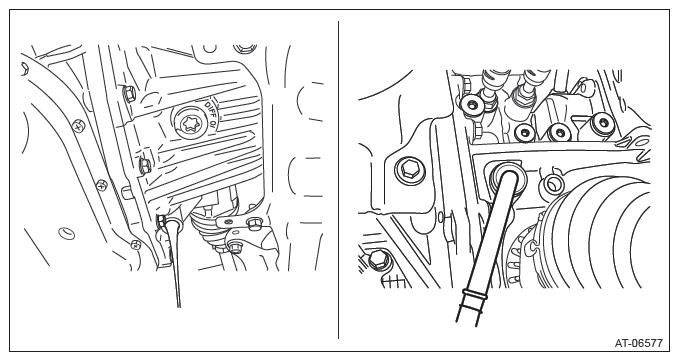

Fig 3: Installing Overflow Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Install the filler plug.
NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
Install the under cover front - transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
