CVTF Cooler (With Warmer Function): Installation

WARNING: This page is about a different variant/trim than selected.

Install the CVTF cooler (with warmer feature) to the transmission.
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

Fig 1: Locating CVTF Cooler (With Warmer Feature) Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant inlet hose to the engine coolant pipe.
NOTE: With the triangle mark on the engine coolant inlet hose facing the vehicle outside, install the hose to the engine side pipe.

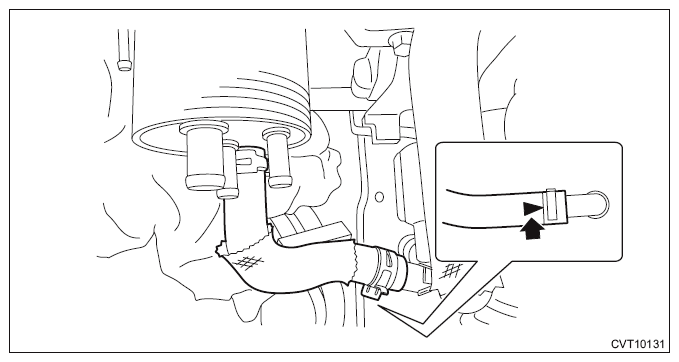

Fig 2: Locating Triangle Mark On Engine Coolant Inlet Hose Facing Vehicle Outside
Courtesy of SUBARU OF AMERICA, INC.
Secure the electric power steering harness with the clip.

Fig 3: Locating Electric Power Steering Harness With Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF inlet hose and CVTF outlet hose to transmission.
NOTE: Use the new CVTF inlet hose and CVTF outlet hose.

Fig 4: Installing CVTF Inlet Hose And CVTF Outlet Hose To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant outlet hose.

Fig 5: Connecting Engine Coolant Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Check installation condition of each hose.
- Make sure the hoses do not interfere with each other or with other components.
- Check each hose for bent, excess curve, and twisting conditions.

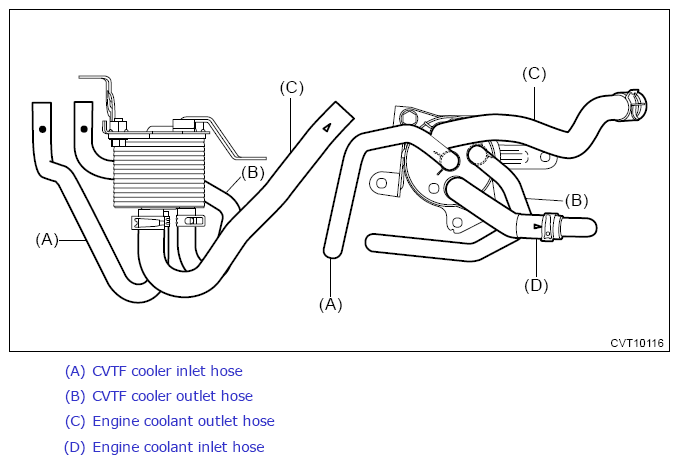

Fig 6: Identifying CVTF Cooler Inlet/Outlet Hose And Engine Coolant Outlet/Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the engine rear hanger.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Fig 7: Locating Engine Rear Hanger Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the EGR control valve harness connector, throttle position sensor harness connector and manifold absolute pressure sensor harness connector.
Connect the engine harness connectors, then install the harness connector bracket.
Tightening torque:

Harness connector bracket

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
Connect the battery ground terminal.
Fill engine coolant. Ref. to COOLING(H4DO)>Engine Coolant>REPLACEMENT .
Adjust the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>ADJUSTMENT .
