CVTF Cooler (With Warmer Function): Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bracket from the CVTF cooler (with warmer feature).

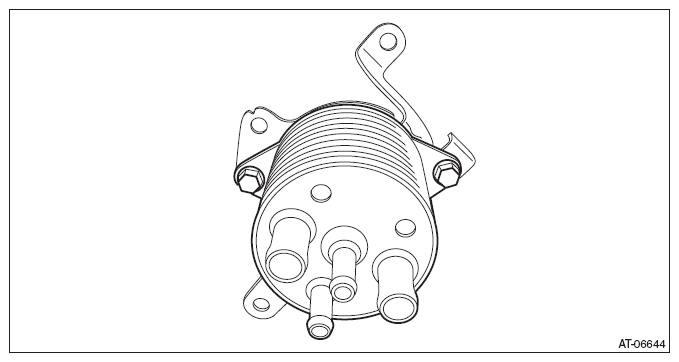

    Fig 1: Removing Bracket From CVTF Cooler (With Warmer Feature)
    G08317878Courtesy of SUBARU OF AMERICA, INC.
