Transmission Case Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the transmission case cover.
    Fig 1: Removing Transmission Case Cover
    G09481494Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose.

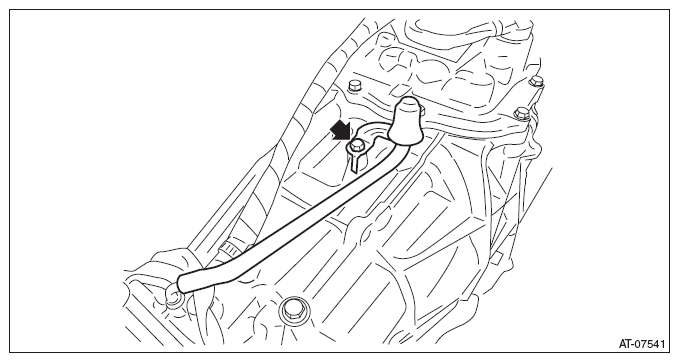

    Fig 2: Locating Air Breather Hose Bolt
    G09481549Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air breather cap.
