Purge Control Solenoid Valve: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the vacuum hose to the purge control solenoid valve.
    Fig 1: Locating Vacuum Hose To Purge Control Solenoid Valve
    G10262362Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the vacuum hose (A) and connector (B) to the purge control solenoid valve.

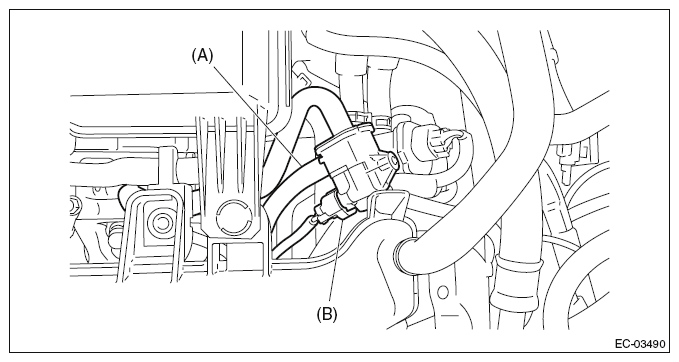

    Fig 2: Connecting Vacuum Hose And Connector To Purge Control Solenoid Valve
    G10262361Courtesy of SUBARU OF AMERICA, INC.
  3. Install the bolt securing the purge control solenoid valve to the intake manifold assembly.
    NOTE: Hold the purge control solenoid valve unit by hand to prevent it from rotating together. Tightening torque:

    3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

  4. Secure the vacuum hose to the clip (A), and connect the vacuum hose to the intake manifold assembly.

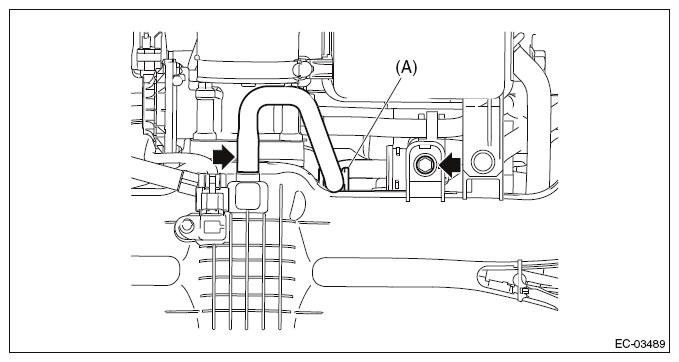

    Fig 3: Locating Vacuum Hose To Clip
    G10262360Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
